Padfoot Rollers For Hire

BROOKS OBR MAIA dry hire padfoot rollers in the following models:

XCMG XS265SPD

Specifications

• Operating Weight - 26 t
• Static Linear Load - 784 N/cm
• Nominal Amplitude - 0-2.05 mm
• Vibrational Frequency - 27/32 Hz
• Gradeability - 50%
• Overall Dimensions - 6990 x 2470 x 3430 mm

XCMG XS205SPD

Specifications

• Operating Weight - 20 t
• Vibration Frequency - 28/33 Hz
• Vibration Force - 385/270 kN
• Drum Diameter - 1.60/1.8 m
• Drum Width - 2.13 m
• Engine Type - Cummins QSB5.9
• Engine Rated Power - 142 kW / 2200 rpm

HAMM 3520P

Specifications

• Operating Weight - 19.58 t
• Vibration Frequency - 27/30 Hz

• Drum Width - 2.22 m
• Engine Type - Deautz TCD2012LO42V
• Engine Rated Power - 155 kW / 2300 rpm

XCMG XS185SPD

Specifications

• Operating Weight - 18.5 t
• Vibration Frequency - 28/33 Hz
• Vibration Force - 340/240kN
• Drum Diameter - 1.52/1.73 m
• Drum Width - 2.13 m
• Engine Type - Cummins QSB5.9
• Engine Rated Power - 142 kW / 2200 rpm


HAMM 3518HTP

Specifications

• Operating Weight - 18 t
• Vibration Frequency - 27/30 Hz

• Drum Width - 2.22 m
• Engine Type - Deautz TCD2012LO62V
• Engine Rated Power - 155 kW / 2200 rpm

Caterpillar CS76B

Specifications

• Operating Weight - 17.68 t
• Vibration Frequency - 28 Hz

• Drum Width - 2.134 m
• Engine Type - Cat C6.6 Acert
• Engine Rated Power - 129 kW / 2200 rpm

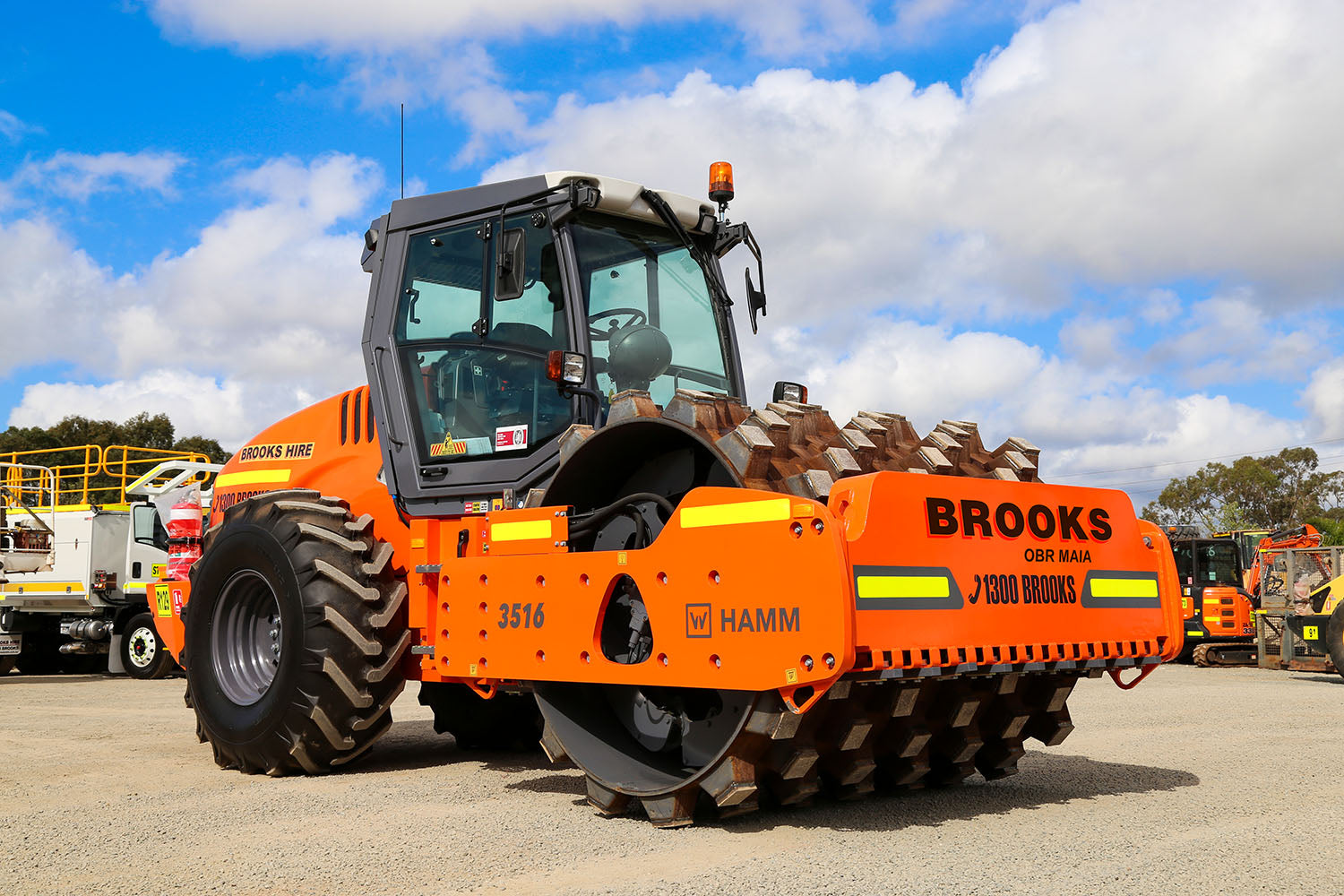

HAMM 3516P

Specifications

• Operating Weight - 15.75 t
• Vibration Frequency - 30/40 Hz

• Drum Width - 2.14 m
• Engine Type - Deautz TCD2012LO62V
• Engine Rated Power - 155 kW / 2200 rpm

Caterpillar CS68B

Specifications

• Operating Weight - 14.3 t
• Vibration Frequency - 30.5 Hz

• Drum Width - 2.134 m
• Engine Type - Cat C4.4 Acert
• Engine Rated Power - 117 kW / 2200 rpm

Caterpillar CS56B

Specifications

• Operating Weight - 12.65 t
• Vibration Frequency - 30.5 Hz

• Drum Width - 2.3 m
• Engine Type - Cat C4.4 Acert
• Engine Rated Power - 83 kW / 2300 rpm
