Brooks OBR MAIA

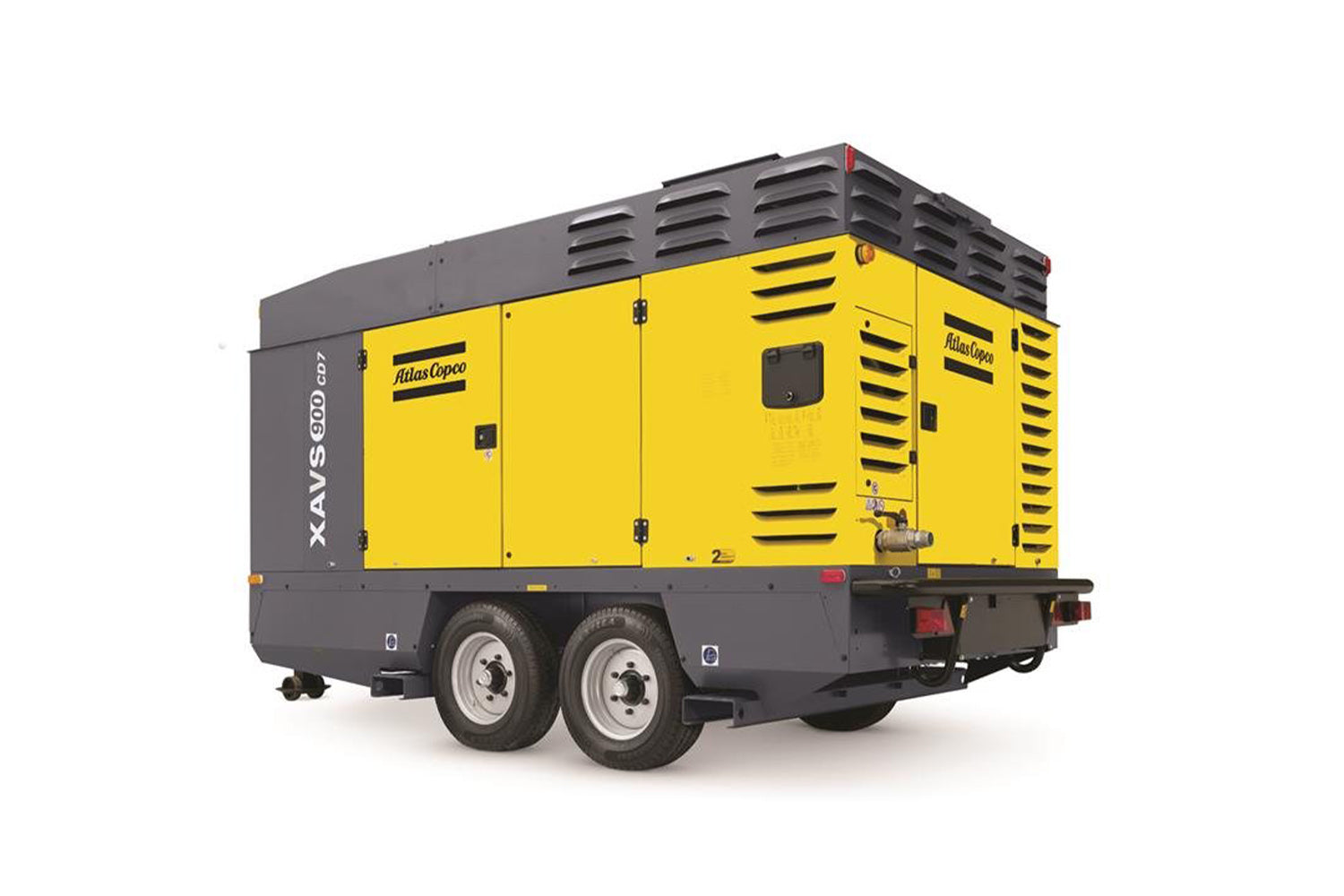

860cfm Portable Air Compressor For Hire

$0.00

Sale Sold out

Technical data		XAVS 900	XAHS 950	XATS 1050	XAMS 1150
Normal effective working pressure	psi	203	174	149	125
	bar(e)	14	12	10.3	8.6
Actual free air delivery*	cfm	860	938	1020	1102
	l/sec	406	443	482	520
	m3/min	24.4	26.6	28.9	31.2
Oil capacity compressor system	l	60	60	80	80
Content fuel tank (standard)	l	580	580	580	580
Air outlet valve		1 x 2”	1 x 2”	1 x 2”	1 x 2”

Engine Caterpillar
Type		C9 ACERT T3
Output	kW	224
Engine speed (nominal)	rpm	1800
Engine speed (unloaded)	rpm	1300
Unit dimensions (overall) L x W x H
Wagon (towbar raised)	m	4.9 x 2.15 x 2.50
Skid	m	4.05 x 2.15 x 2.41
Support mounted	m	4.05 x 2.15 x 2.25
Weight (wet excl. fuel)
Wagon	kg	5300
Support mounted (option big fueltank)	kg	5050/5180
Skid (option big fueltank)	kg	5200/5330
Sound level
Sound power level (LWA)**	dB(A)	104
Sound pressure level (LPA) at 7m acc. to ISO 2151	dB(A)	76
